Automatic pedestrian waist high 304 stainless steel flap barrier turnstile gate with RFID card

बुनियादी जानकारी
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: WEJOIN
प्रमाणन: CE,ISO
मॉडल संख्या: WJTY201
न्यूनतम आदेश मात्रा: 1pcs
मूल्य: negotiation
पैकेजिंग विवरण: लकड़ी के बक्से
प्रसव के समय: 10-30 दिन
भुगतान शर्तें: टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता: 50pcs/सप्ताह
विस्तार जानकारी
उत्पाद का नाम: फ्लैप बैरियर सामग्री: 304 स्टेनलेस स्टील
प्रकार: अकेला कोर ; डबल कोर काम पर्यावरण: इंडोर / आउटडोर (आश्रय)
गारंटी: 12 महीने दिशा: एक या द्वि-दिशा (वैकल्पिक)

उत्पाद विवरण

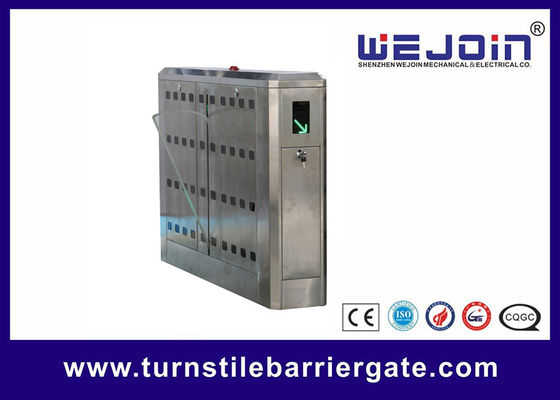

Automatic pedestrian waist high 304 stainless steel flap barrier turnstile gate with RFID card



Product Introduction

Intelligent flap barrier is a brand-new product of our company. It has features of precise craftsmanship, comprehensive functions and high reliability, which can be applied in high class communities, intelligent buildings, hotels, subway stations and other high level venues and then achieve a more intelligent management and control of pedestrian access. The most typical intelligent application is high speed railway station, subway station, BRT station, scenic ticket system and so on.



Flap Barrier Gate Quick Detail:

  • Material: 304 stainless steel

  • working temperature :-10°C~50°C

  • Function: automatic

  • Direction: bi-direction

  • Power supply :AC220V±15%, AC110V±15%

  • Motor voltage :DC12V (brush motor)



Flap Barrier Gate Description:

1. Flap barrier is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier.

2. Intelligent flap barrier is a brand-new product of WEJOIN company. Flap barrier, as the upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control. WEJOIN flap barrier has features of precise craftsmanship, comprehensive functions and high technology.

3. It has application in high class communities, intelligent buildings, hotels, subway stations and other high level venues.

4. Choosing different identification equipment and applying reliable security protection devices, alarm devices, direction indicator to realize the intelligent management of access control is comply with the fire safety requirements.

5. Flap barrier motor can be classified into single motor and double motors. The single one is used for single lane and the double one is used for multi-lanes.



Flap Barrier Gate Applications:

High class communities, intelligent buildings, hotels, subway stations and other high level venues.



Flap Barrier Gate Functions and Features

1. The design is of integration of machinery and electronic structure, with special drive style and reliable machinery auto locking solution, precise worm gear, and cabinet composite structure.

2. Malfunction self-detection. Which is easy for operation and maintenance.

3. Flap work synchronously.

4. Flap auto reversing when meeting exterior force.

5. Audible and visual alarm in case of unauthorized access.

6. Auti-reverse passing

7. Operational mode can be set up through the built-in menu on the control board.

8. Auto reset function, after the flap open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-reset time is adjustable.

9. Flaps open when power off, and auto-close when power on.

10. Compatible with diverse access control devices.

11. Pedestrian flow directions can be single or double directions.

12. Available for two-way traffic lights, which can prompt the state---pass or no-entry.

13. RS232 and LAN sockets are available to connect the computer.



Flap Barrier Gate Specifications

Model

WJTY203

Cabinet dimension

1200mm(L)×270mm(W)×1000mm(H)

Stretching-out flap length

275mm

The max lane width

600mm

Cabinet material

304 stainless steel

Power supply

AC220V±15%, AC110V±15%

Motor voltage

DC24V (brush motor)

Access device input voltage

dry contact or 12V electrical level signal or >100ms 12V impulse signal or driving current >10mA

Max flow rate

30~40 people per minute

Flap opening/closing time

1 sec

reset time when power on

3 sec

protection grade

IP32

working environment

outdoors (with shelter) and indoors.

working temperature

-10°C~50°C



Automatic pedestrian waist high 304 stainless steel flap barrier turnstile gate with RFID card
