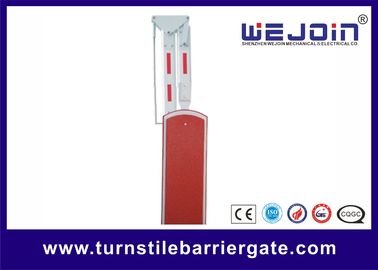

Orange Double Direction Parking Barrier Gate with Aluminum Alloy Core

बुनियादी जानकारी
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: WEJOIN
प्रमाणन: CE ISO SGS
Model Number: WJDZ301
न्यूनतम आदेश मात्रा: 1 सेट
मूल्य: Negotiable
पैकेजिंग विवरण: दफ़्ती
Delivery Time: 3-5 working days after payment being received
Payment Terms: T/T, Western Union
आपूर्ति की क्षमता: 10000 सेट/माह
विस्तार जानकारी
Material:: Die Casting Aluminum Alloy Color:: blue or red
Speed: 1s; 3s; 6s Power: 80W
Boom Type: Straight Arm; Folding arm; Fence arm Housing Material: Steel
हाई लाइट:

ऑटो बैरियर गेट प्रणाली

,

कार पार्क अवरोध


उत्पाद विवरण



Orange Double Direction Parking Barrier Gate with Aluminum Alloy Core





Application



Suitable for indoor as well as outdoor parking area
Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping

 malls, hospitals, stadiums, business centers,etc.



Technical Specification



Description

Parameter

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

60kgs

Arm Speed

 3s, 6s

Max boom length

6 meters



Ordering Information



  • Ordering Code

Model No.

Open/Close Speed

Max Boom Length

Boom Type

WJDZ30116

6 seconds

6m

Straight boom

WJDZ30113

3 seconds

4.5m

Straight boom

WJDZ30126

6 seconds

5m

90 degree, Articulated boom

WJDZ30123

3 seconds

3m

90 degree, Articulated boom

WJDZ30136

6 seconds

5m

180 degree, Articulated boom

WJDZ30133

3 seconds

3m

180 degree, Articulated boom





  • Arm Installation Direction



Different from WJDZ101.102.501, WJDZ301 series can be both right- installed and left installed,

customers can easily adjust at their own.



  • Optional Barrier Arm



Features:

Advanced Features:



1. Safe---the barrier will automatically go back when meet obstacles during closing.





2. When power off, you can open the clutch by hand, so there is no need to use the clutch key.





3 Fan cooling machine reduces the motor temperature by high frequency using, and never get over- heated. Unique temperature calefaction design for low temperature using prevents freezing in cold

weather.



4. Exactitude aluminum alloy die- casting motor base reduces the noise and joint abrasion to

prolong the barrier gate working life.



5. Thimble type motor worm design for preventing plugging up in using.

6. Balance spring--- no noise and easy adjusting.



7. Double limit ways (electronic limit and motor sensor memory limit) for boom rising and falling.





Basic Features:

    AC motor is more powerful and no maintenance.
    Boom can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 3 second to 6 seconds.
    All the operation process is soft without any noise and shaking.
    Infrared photocell interface, Loop detector interface and IC system interface are reserved for the other functions.
    Green light and red light are used inside for indication the position of the boom.





Barrier housing Dimension



Study and strong housing 2.5 mm thickness mild steel, Housing is polished, phosphorized and further finished

 with plastic coating to ensure long lasting bright colors





All Product Tests Before Delivery:



WEJOIN utilizes advanced testing equipment and various testing methods in all production processes.





Certification:



WEJOIN product manufacturing and testing are conducted in rigorous conformation with ISO international

quality management system standards, allowing our company to be ISO certified. Meanwhile, our products

have earned CE marking and more than 80 patent rights.
