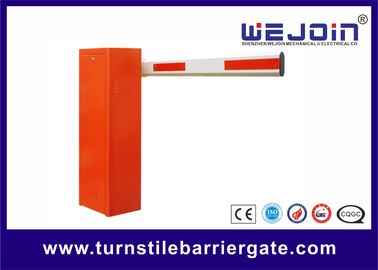

110v / 220v Road Barriers Parking Barrier Gate with Red Color Housing

बुनियादी जानकारी
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: WEJOIN
प्रमाणन: CE ISO SGS
Model Number: WJDZ701
न्यूनतम आदेश मात्रा: 1 सेट
मूल्य: Negotiable
पैकेजिंग विवरण: दफ़्ती
Delivery Time: 3-5 working days after payment being received
Payment Terms: T/T, Western Union
आपूर्ति की क्षमता: 10000 सेट/माह
विस्तार जानकारी
Color: Red; Yellow Motor: Die Casting Aluminum Alloy
Speed: 3s,6s Max Boom Length: 6m
Power: 120W Boom Dimension: 45*100mm
हाई लाइट:

पार्किंग स्थल बांह गेट

,

ऑटो बैरियर गेट प्रणाली


उत्पाद विवरण



110v / 220v Road Barriers Parking Barrier Gate with Red Color Housing







Quick Detail



Name

Bi-directional Barrier Gate

Application

Parking System

Speed

3/6 second

Feature

Manual release

Rated Power

120W

Certificate

CE, ISO, SGS

Net Weight

39KG

Voltage

AC220V, AC110V







Model Selection and Differences



Model

Boom Shape

Max Boom Length

Speed

WJDZ70116

Straight boom

4.5m

6 seconds

WJDZ70113

Straight boom

4m

3 seconds

WJDZ70126

90 degree, Articulated boom

4m

6 seconds

WJDZ70123

90 degree, Articulated boom

3m

3 seconds

WJDZ70136

180 degree, Articulated boom

4m

6 seconds

WJDZ70133

180 degree, Articulated boom

3m

3 seconds

WJDZ70146

Two-level, fence boom

3.5m

6 seconds

WJDZ70156

Three-level, fence boom

3m

6 seconds





Functions & Features:





1.Advanced manual release

2.Boom can rise and fall on left/right side by setting on the same machine
3.No need to change the balance spring when changing the booms
4.Adopts the 3rd generation WEJOIN machine core
5.Supports the infrared photocell for anti-bumping function (optional)
6.Supports the external and internal vehicle loop detector (optional)
7.Auto closing
8.RS485 communication module (optional)
9.Thermal radiates rapidly, no thermal protection
10.Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the

problem of mechanism block up
11.Special art and craft makes out the most modernized and fashionable housing
12.Safety photo electricity limit switch





Applications



Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times. And the barrier can work with parking system very well, and can be used in door and outdoor.





Dimension for Housing





110v / 220v Road Barriers Parking Barrier Gate with Red Color Housing 0
